Overview
ICON Vehicle Dynamics suspension systems for the 2024–2025 Toyota Tacoma are built for serious drivers who demand maximum performance and control. ICON’s engineering focus is on increasing wheel travel and improving damping, delivering a more confident, planted ride with excellent comfort—both on-road and off-road.
This Stage 3 system includes vehicle-specific tuned 2.5 Series front coilovers with internal reservoirs to help manage heat and maintain consistent performance, along with ICON-engineered coil springs for a smooth, predictable feel throughout the suspension’s travel. Front lift height is adjustable from 1.25–3 inches, making room for larger, more aggressive wheel and tire setups.
For 4WD applications, the combination of front differential drop brackets and ICON’s Tacoma-specific coilover lengths helps maximize front suspension travel while reducing the risk of CV bind. Polyurethane differential mounting bushings replace the softer factory bushings to minimize differential movement under load, improving stability and durability when the terrain gets rough.
Key Features
-
Vehicle-specific tuned front and rear shocks for superior damping and control
-
Increased wheel travel and improved ride quality over stock
-
Front differential drop improves CV operating angles and maximizes travel on 4WD models
-
Adjustable front coilovers provide 1.25–3" of lift over stock
-
Billet aluminum upper control arms for strength, durability, and on-vehicle caster/camber adjustability
-
Patented Delta Joint PRO (U.S. Pat. 10,731,700) with 90° total articulation
-
Triple-rate rear coil springs improve ride quality and performance while providing 0.5" rear lift
-
6061 aircraft-grade aluminum CNC-machined components
-
Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts
-
ICON-engineered front and rear coil springs
-
FK rod end bearings for extended longevity and minimal deflection
-
2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
Technical Notes
-
OEM Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Wheels:
-
ICON Alloys 17x8.5 — 5.75" backspace / 25mm offset
-
ICON Alloys 18x9 — 6.00" backspace / 25mm offset
-
-
Recommended Aftermarket Tires: 33" x 11.50"
-
Larger tires may fit, but trimming/modifications may be required.
-
Application Notes:
-
#30: Adjustable track bar recommended (not required) to realign axle
-
#55: Shocks are fully serviceable. Lift heights shown are for a stock-equipped vehicle.
-
#85: Lift ranges are for stock-equipped vehicles; added weight from accessories will change lift height.
-
#153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
-
#155: ADAS recalibration required after installation
-
#164: Will not fit Tacoma submodels equipped with rear leaf springs
-
#169: 4WD models require front differential drop #55160
-
#206: Kit is configured for 4WD. On 2WD models, diff drop #55160 is not required; remaining components can be purchased individually with full functionality. 2WD-specific kits coming soon.

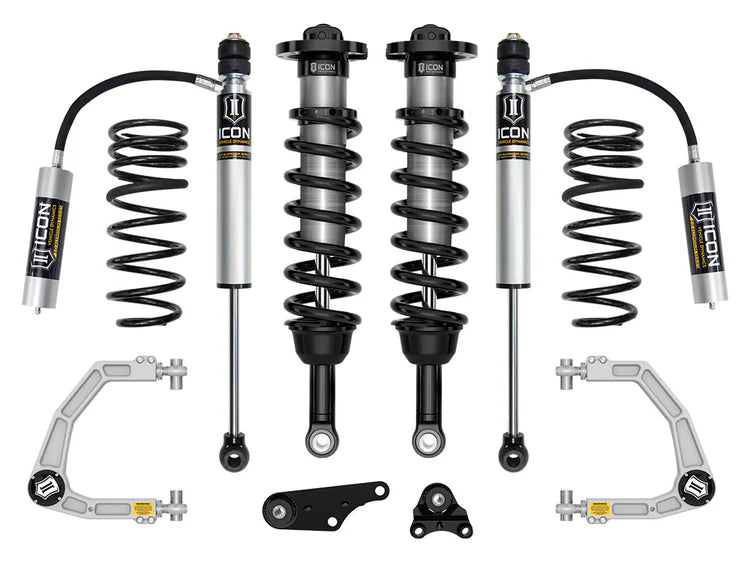

System Components
-
58680 (qty 1): 24–25 Tacoma 2.5 VS IR Coilover Kit
-
58552DJ (qty 1): 24–25 Tacoma / 24–25 LC250 / 24–25 GX550 / 25 4Runner Billet UCA Delta Joint PRO Kit
-
55160 (qty 1): 24–25 Tacoma 4WD / 24–25 LC250 / 25 4Runner 4WD Front Diff Drop Kit
-
56518R (qty 2): 24–25 Tacoma 0–1" Rear 2.0 VS RR Shocks
-
51213 (qty 1): 24–25 Tacoma 0.5" Lift Triple-Rate Rear Coil Spring Kit
