ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 4 Suspension System, Tubular, Triple Rate Rear Springs

Overview

ICON Vehicle Dynamics suspension systems for the 2024–2025 Toyota Tacoma are engineered for drivers who want maximum performance, control, and confidence on any terrain. ICON’s core focus is improving wheel travel and damping, which translates into a more stable, predictable ride with outstanding comfort—both on-road and off-road.

This Stage 4 system features vehicle-specific tuned 2.5 Series front coilovers with remote reservoirs, paired with ICON-engineered coil springs for a smooth, responsive feel throughout the full range of travel. Remote reservoirs significantly increase oil volume and cooling surface area, helping resist overheating and cavitation during aggressive driving—so performance stays consistent when conditions get demanding.

Front lift height is adjustable from 1.25–3 inches, allowing clearance for larger, more aggressive wheel and tire combinations. On 4WD models, the combination of front differential drop brackets and Tacoma-specific coilover lengths helps maximize usable front travel while reducing the risk of CV bind. Polyurethane differential mounting bushings replace soft factory bushings to limit differential movement under load for improved stability and durability.

Key Features

• 2.5 Series front coilovers with remote reservoirs for superior damping, control, and cooling

• Increased wheel travel and improved ride quality over stock

• Front differential drop improves CV operating angles and maximizes travel on 4WD models

• Adjustable front coilovers provide 1.25–3" of lift over stock

• Tubular upper control arms for strength, durability, and alignment correction

• Patented Delta Joint PRO (U.S. Pat. 10,731,700) with 90° total articulation

• Triple-rate rear coil springs improve ride quality and performance while providing 0.5" rear lift

• 6061 aircraft-grade aluminum CNC-machined components

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts

• ICON-engineered front and rear coil springs

• FK rod end bearings for longevity and minimal deflection

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts for increased performance and a balanced tune with the front coilovers

Technical Notes

• OEM Wheels & Tires Fitment: Yes

• Recommended Aftermarket Wheels:

  • ICON Alloys 17x8.5 — 5.75" backspace / 25mm offset

  • ICON Alloys 18x9 — 6.00" backspace / 25mm offset

• Recommended Aftermarket Tires: 33" x 11.50"

  • Larger tires may fit, but trimming/modifications may be required.

Application Notes:

• #30: Adjustable track bar recommended (not required) to realign axle

• #55: Shocks are fully serviceable. Lift heights shown are for stock-equipped vehicles.

• #85: Lift ranges are for stock-equipped vehicles; added weight from accessories will change lift height.

• #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

• #155: ADAS recalibration required after installation

• #164: Will not fit Tacoma submodels equipped with rear leaf springs

• #169: 4WD models require front differential drop #55160

• #206: Kit is configured for 4WD. On 2WD models, diff drop #55160 is not required; remaining components can be purchased individually with full functionality. 2WD-specific kits coming soon.

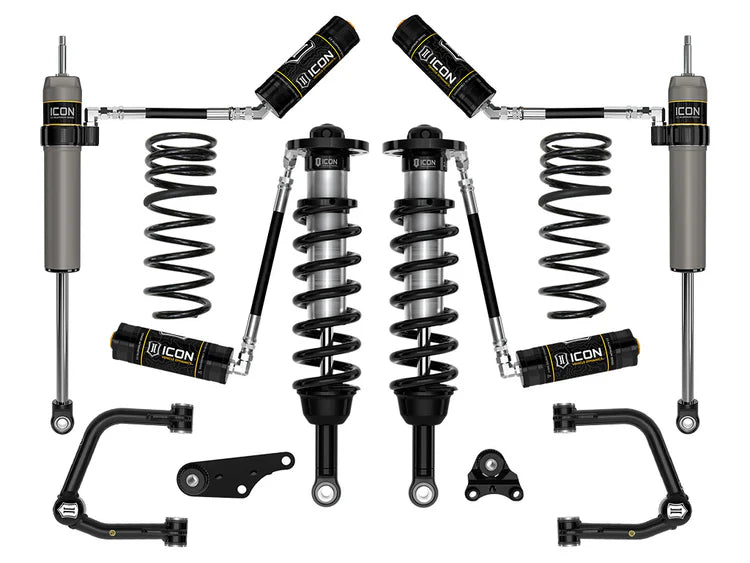

System Components

• 58780 (qty 1): 24–25 Tacoma 2.5 VS RR Coilover Kit

• 58452DJ (qty 1): 24–25 Tacoma / 24–25 LC250 / 24–25 GX550 / 25 4Runner Tubular UCA Delta Joint PRO Kit

• 55160 (qty 1): 24–25 Tacoma 4WD / 24–25 LC250 / 25 4Runner 4WD Front Diff Drop Kit

• 57808P (qty 1): 24–25 Tacoma 0–1" Rear 2.5 VS RR Pair

• 51213 (qty 1): 24–25 Tacoma 0.5" Lift Triple-Rate Rear Coil Spring Kit
