Overview
ICON Vehicle Dynamics 2024–2025 Toyota Land Cruiser 250 Series suspension systems are built for maximum performance and drivers who demand more control on the street and more capability off-road. ICON’s engineering focus is simple: increase wheel travel and improve damping performance for a smoother ride, better handling, and confidence in harsh terrain.
The Stage 2 system starts up front with vehicle-specific tuned 2.5 Series coilovers featuring internal reservoirs for consistent performance and exceptional cooling. ICON-engineered coil springs deliver a planted, predictable feel through the full range of travel, while the coilovers provide 1.25"–3" of adjustable front lift to clear larger, more aggressive wheel and tire setups. A front differential drop and ICON’s optimized coilover lengths help maximize usable travel and reduce CV angles to prevent bind. Polyurethane differential mount bushings replace soft OE bushings to limit differential movement under load and improve drivetrain stability.
To further enhance front-end performance and alignment, this kit includes ICON billet aluminum upper control arms. These UCAs correct geometry, increase suspension component clearance, and add on-vehicle camber and caster adjustment for improved drivability—especially on lifted vehicles. ICON’s serviceable, rebuildable Delta Joint PRO replaces the factory ball joint to allow full bump and droop travel while eliminating bind.
In the rear, dual-rate coil springs combine a softer primary rate for comfort with a firmer overload rate for excellent bottom-out resistance and off-road control. The included 2.0 Aluminum Series internal reservoir rear shocks are valved specifically for the Land Cruiser 250, balancing the vehicle from front to rear. With 2" of rear lift, the system delivers a more level stance and a noticeable gain in capability everywhere you drive.
Key Features
-
Vehicle-specific tuned front and rear shocks for superior damping and control
-
Increased wheel travel and improved ride quality over stock
-
Front differential drop improves CV operating angle and helps maximize available travel
-
Adjustable 2.5 Series coilovers provide 1.25"–3" of front lift
-
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment
-
UCAs feature the patented Delta Joint PRO (U.S. Pat. 10,731,700) with 90° total articulation
-
CNC-machined 6061 aircraft-grade aluminum components
-
Corrosion-resistant CAD-plated coilover bodies with 7/8" shafts
-
Dual-rate rear coils improve performance and ride quality while providing 2" of rear lift
-
FK rod end bearings for long life and minimal deflection
-
2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
Technical Notes
-
OEM wheels & tires fitment: Yes
-
Recommended aftermarket wheels: 17x8.5, 6.32" backspace / +40mm offset
-
Recommended aftermarket wheels: ICON Alloys 18x9, 6.6" backspace / +40mm offset
-
Recommended tires: 33" x 11.50" (larger tires may require trimming/modifications)
-
Application Note #30: Adjustable track bar recommended to realign axle (not required)
-
Application Note #55: Shocks fully serviceable; lift heights based on stock-equipped vehicle
-
Application Note #85: Added weight from accessories will alter lift range
-
Application Note #155: ADAS recalibration required after installation

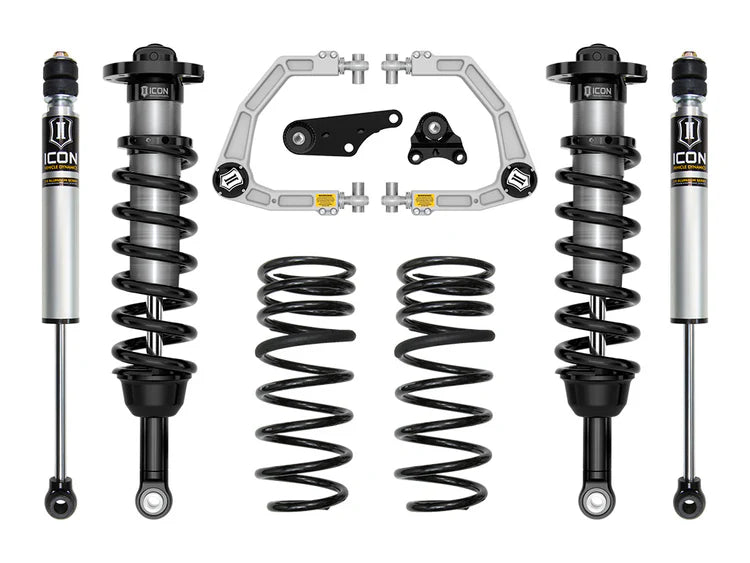

System Components
-
58691 (Qty 1): 24–25 Land Cruiser 250 Series Front 2.5 VS IR Coilover Kit
-
58552DJ (Qty 1): Billet UCA Delta Joint PRO Kit (Tacoma/LC250/GX550/4Runner)
-
55160 (Qty 1): Front Differential Drop Kit (Tacoma 4WD/LC250/4Runner 4WD)
-
56520 (Qty 2): LC250/GX550 0–3" Rear 2.0 VS IR Shocks
-
52752 (Qty 1): LC250/GX550 2" Dual-Rate Rear Spring Kit
