Overview

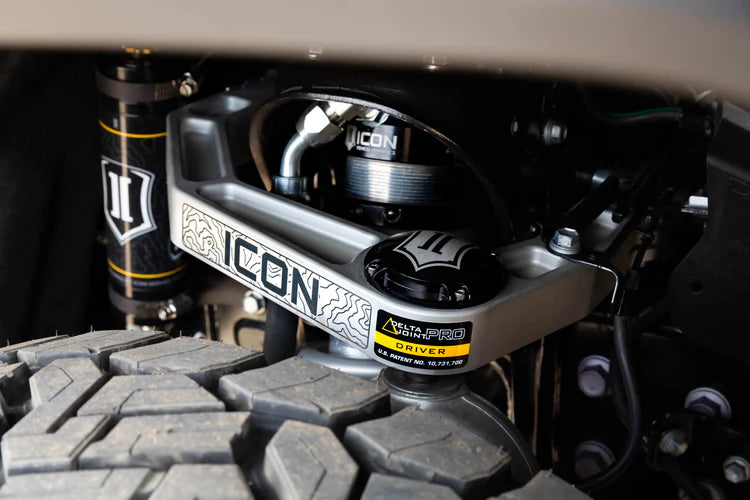

Upgrade your front suspension with ICON’s billet aluminum upper control arms, engineered to improve performance and alignment on the 2024–2025 Toyota Tacoma, 2024–2025 Toyota Land Cruiser 250, 2025 Toyota 4Runner, and 2024–2025 Lexus GX550. This kit corrects front-end geometry, increases available caster and camber adjustment, and improves clearance around key suspension components—helping your vehicle drive straighter, handle better, and align properly after a lift.

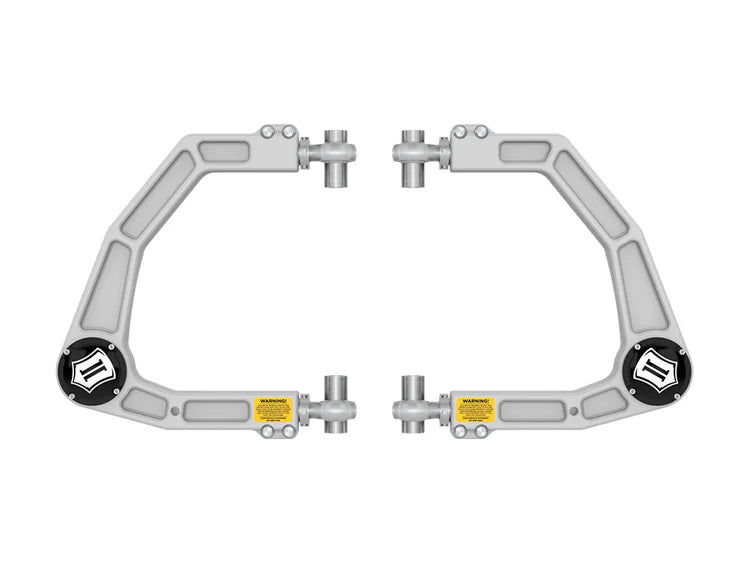

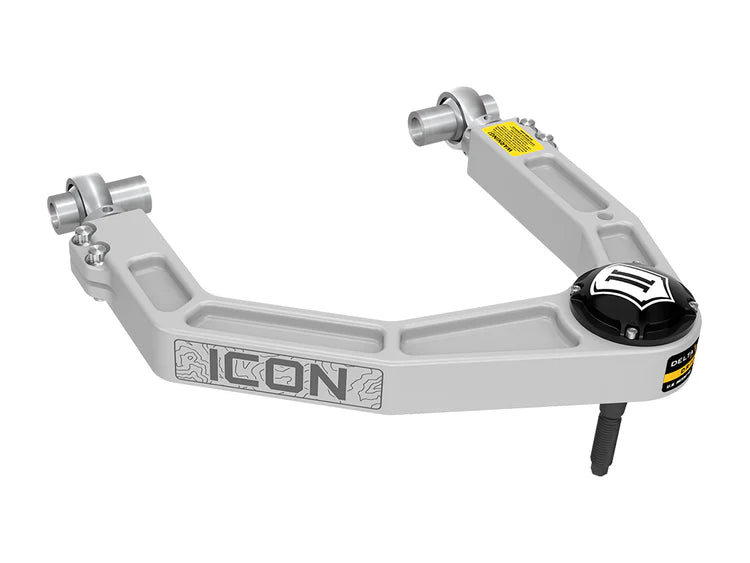

Each arm is CNC-machined from 6061 billet aluminum and built with a lightweight hybrid H-beam design that resists bending forces more effectively than traditional tubular arms. ICON replaces the factory ball joint with the Delta Joint PRO, a fully serviceable and rebuildable joint designed to deliver maximum articulation through full bump and droop travel while eliminating binding.
For precise, smooth operation at the chassis pivots, these UCAs use FK 3/4" heim joints, and ICON’s signature double-adjuster sleeve allows fast, accurate on-vehicle camber and caster adjustments. With all required hardware included, this kit is one of the best front-end upgrades for lifted Tacomas, Land Cruiser 250s, 4Runners, and GX550s.
Key Features
-
CNC-machined 6061 billet aluminum with a satin anodized finish
-
Corrects suspension geometry and supports proper alignment on Tacomas with up to 3" of lift
-
Quick, precise on-vehicle adjustment for both caster and camber
-
Delta Joint PRO delivers maximum articulation with no binding
-
Delta Joint PRO is 100% serviceable and rebuildable
-
FK rod ends at chassis pivots for strength and precise steering feel
-
Built-in O-ring sealed dust cap for added protection
Technical Notes
-
Factory Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Wheels:
-
ICON Alloys 17x8.5 — 5.75" backspace / 25mm offset
-
ICON Alloys 18x9 — 6.6" backspace / 40mm offset
-
-
Recommended Aftermarket Tires: 33" x 11.50"
-
Larger tires may fit, but trimming/modifications may be required.
-
-
Lift Compatibility: Works with 0–3" of front lift over stock
